Spring Operated Cable Reeling Drums
CRANETECH make spring operated cable reeling drums supply power to machines such as cranes & hoists and are suitable for both A.C & D.C applications.
These drums winds & unwind cable on the drum and are used in horizontal and vertical operations. i.e: Cranes, Lifting Magnets etc.
The springs used in these drums are of high quality spring steel material.
The power sliprings are designed for 600V, A.C.
-

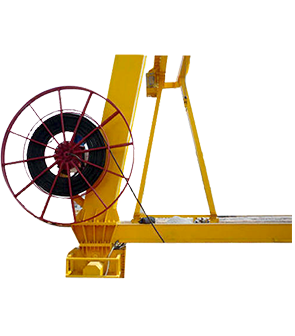

Motorised Cable Reeling Drums
CRANETECH Make motorized cable reeling drums are suitable for handling long length of cables where Spring operated cable drums are not recommended. The Torque motors are capable of operating continuously in stalled position. Since these motors are continuously rated, there will be no problem even if the motor remains ON during winding and unwinding direction. These drums are driven by mean of chain and sprocket. These drums supply power to travelling cranes. i.e Eot Cranes.
-

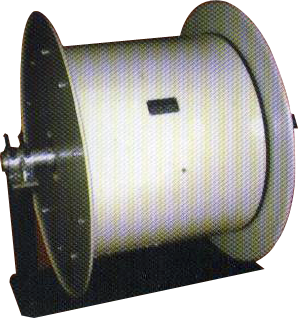

Sprocket Driven Cable Reeling Drums
CRANETECH Make Sprocket driven Cable Reeling Drums are suitable for avoiding tension on the cable. These drums are driven by means of chain and sprocket. These type of Cable drums are recommended for single cable layer on the drum. These drums are used in vertical operation i.e. Lifting Magnet.
-

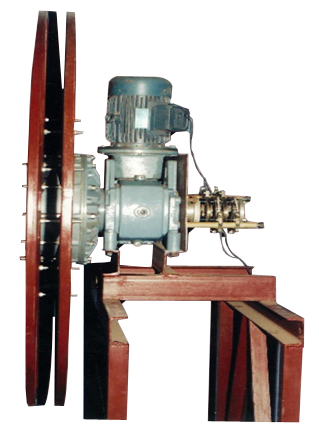

Torque Controller Cable Reeling Drum
Torque Controller Cable Reeling Drums are used for Heavy duty cables and where Cable length is more. i.e Gantry Cranes.
-
Mobile Cable Reeling Drums
"CRANETECH" Make Spring Operated Cable Reeling Drum is also used in Telescopic Cranes.
-

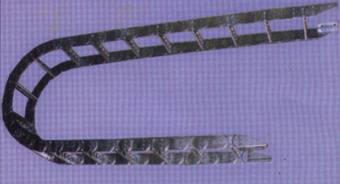

Cable Drag Chains
CABLE DRAG CHAINS provides protection for power cables or hoses and support them for smooth and sure movement on machines.
The cables moves smoothly in a uniform motion and there will not be any breaks in electrical current.
The chain is constructed in such a way that it cannot bend below a fixed radius.
Drag chains are used for conveying cables and hoses. In hoses liquid, air or gases are conveyed. They are used for horizontal, vertical or in circular movements.
Material of links is M.S. galvanised steel.
Material of stay is alluminium.
Chains are available in Split or Unsplit types
-

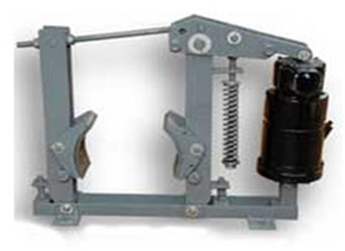

Thrustor Brakes
CRANETECH make Thrustor operated brakes are of 'B' class insulation and continuously rated operating on 3 phase, 415 V. A.C., 50 Hz supply.
Advantages: a) Low power consumption b) Minimum maintenance c) Full thrust is maintained from start to finish of stroke. d) Switching operations 720 per hour max. Available brakes sizes from Drum dia. 100mm to 6600 mm
